Electrical Alternans

Electrical alternans, QRS alternans, T wave alternans

ECG Waveform Amplitude

ECG waveform, amplitude

Electrical Alternans

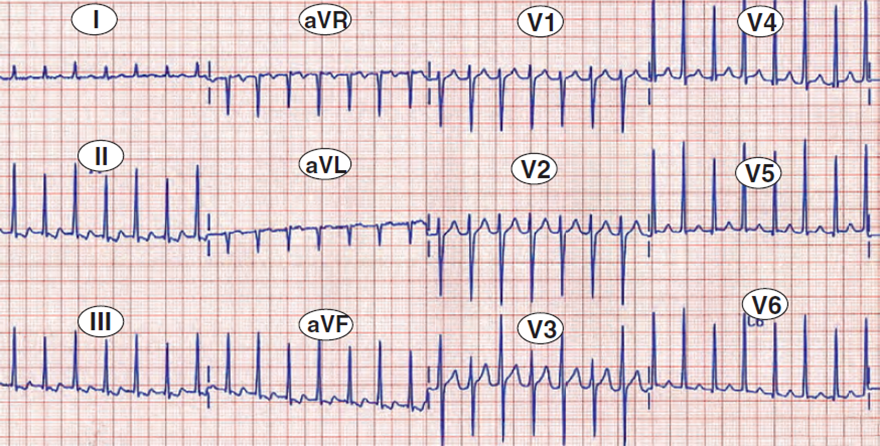

ECG QRS alternans, massive pericardial effusion, mechanical swinging

Mechanism of Electrical Alternans

Electrical QRS alternans, massive pericardial effusion, Pericarditis
  • During the cardiac cycle (action potential), from beat to beat, the changes
  • There are 3 main causes of electrical alternans

  • Repolarization alternans
  • Conduction Alternans
  • Motion Alternans
    • Is the most common cause of electrical alternans
    • Occurs in pericardial effusion
    • The heart "swims" in the effusion
    • On the ECG, the amplitude of QRS complexes changes

Repolarization Alternans

ECG repolarization alternans, T wave alternans, U wave alternans, ST segment alternans

T Wave Alternans

ECG Electrical repolarization T wave alternans

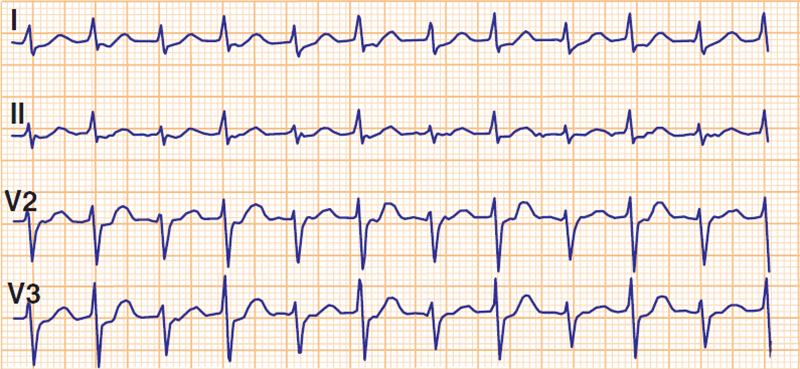

ECG T wave repolarization alternans, congenital long QT syndrome

Repolarization Alternans of the T Wave


U Wave Alternans

U wave electrical repolarization alternans
ECG Electrical U wave alternans

Repolarization Alternans of the U Wave


ST Segment Alternans

ST segment alternans, Electrical alternans ECG acute STEMI infarction, electrical ST segment alternans

Repolarization Alternans of the ST Segment


Conduction Alternans

ECG Electrical QRS complex alternans

ECG electrical QRS alternans, orthodromic avrt

QRS Alternans



ECG Conduction / Refractoriness alternans, QRS complex alternans, Repolarization T wave alternans

QRS Alternans and Repolarization Alternans of T Wave


Motion Alternans

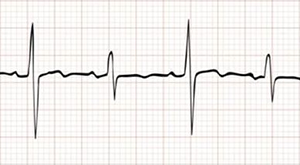

Cardiac motion electrical alternans

ECG Electrical QRS complex alternans

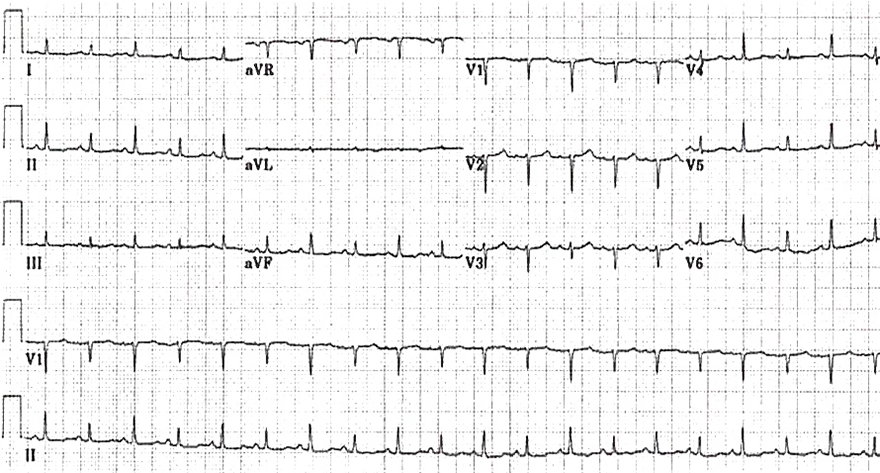

ECG peridardial effusion triad: Sinus tachycardia, QRS alternans, Low QRS amplitude

QRS Alternans




Sources

  • ECG from Basics to Essentials Step by Step
  • litfl.com
  • ecgwaves.com
  • metealpaslan.com
  • medmastery.com
  • uptodate.com
  • ecgpedia.org
  • wikipedia.org
  • Strong Medicine
  • Understanding Pacemakers
