Hypercalcemia

Hypercalcaemia, Hypercalcemia, High calcium level

Calcium (Calcium, Ca²⁺)
Causes of Hypercalcemia
ECG and Hypercalcemia
ECG Curve and Minerals

Calcium (Calcium, Ca²⁺)

Calcium is mainly responsible for repolarization of the action potential
Physiological concentration is 2.1 - 2.6 mmol/l
Hypercalcemia has 3 stages:

Mild ( 2.7 - 2.9 mmol/l ) hypercalcemia
Moderate ( 3.0 - 3.4 mmol/l ) hypercalcemia
Severe ( > 3.4 mmol/l ) hypercalcemia

Calcium is mainly found in:

Milk, cheese, and yogurt

Causes of Hypercalcemia

Most common causes of hypercalcemia

Bone metastases break down Ca²⁺ from the bone, e.g., breast carcinoma. However, metastases in prostate carcinoma support bone growth and lead to Ca²⁺ consumption, paradoxically causing hypocalcemia
Immobilization - prolonged immobilization leads to bone breakdown and the release of Ca²⁺
Multiple myeloma - a cancerous disease of B-lymphocytes, B-lymphocytes proliferate in the bones and break down Ca²⁺
Excess vitamin D - vitamin D increases Ca²⁺ resorption in the intestine
Sarcoidosis - substances with functions similar to vitamin D are formed
Hyperparathyroidism - in the parathyroid glands there is overproduction of parathyroid hormone, which breaks down Ca²⁺ from the bones
Chronic kidney disease - hyperparathyroidism develops

ECG and Hypercalcemia

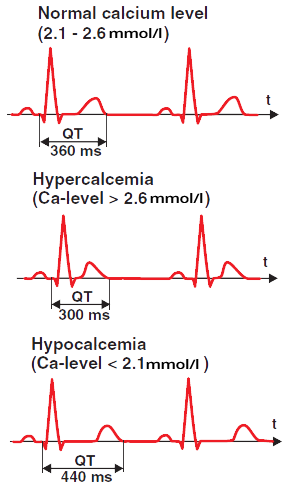

ECG changes in hypercalcaemia, hypocalcaemia

Main feature:

Shortened QT interval

Secondary features:

Osborn wave (occurs in severe hypercalcemia)

Often creates a notch at the end of the QRS complex
Sometimes can mimic ST elevation (STEMI myocardial infarction)

The ascending part of the T wave is steeper than the descending part

In severe hypercalcemia ( Ca²⁺ > 3.4 mmol/l ) the risk includes:

Ventricular fibrillation

ECG Curve and Minerals

Hyperkalemia enlarges the T wave
Hypokalemia reduces the T wave
Hypercalcemia shortens the QT interval
Hypocalcemia prolongs the QT interval

ECG changes hypercalcemia, hypocalcemia, hyperkalemia, hypokalemia, T wave, QT interval

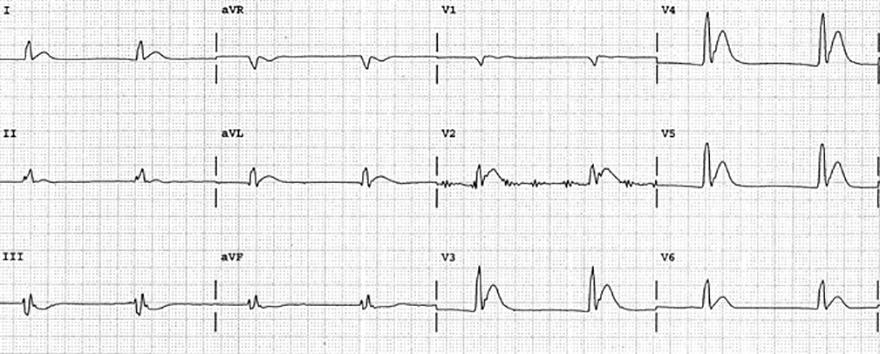

Hypercalcemia ( 3.7 mmol/l )

Shortened QT interval ( QT_c: 0.33s )
Osborn wave (V2-V5)

Notch at the end of QRS

Junctional rhythm

Heart rate: 50/min.
P waves are not visible

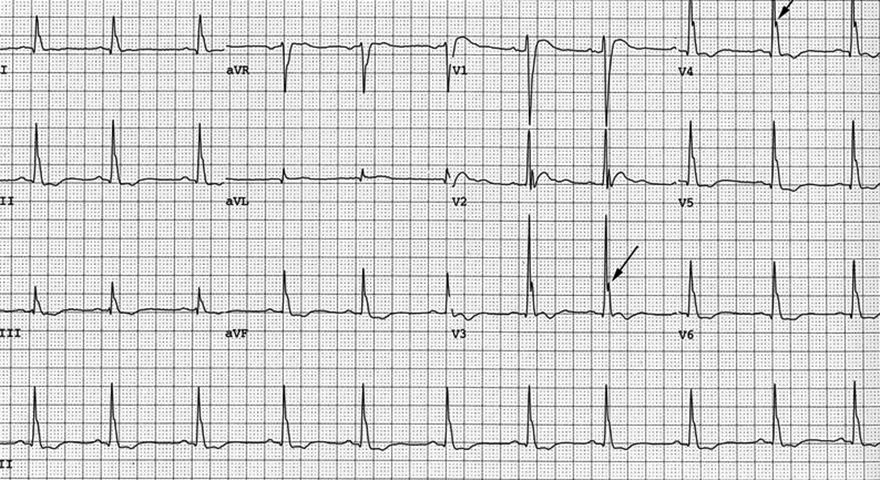

Hypercalcemia ( 4.1 mmol/l )

Borderline shortened QT interval ( QT_c: 0.36s )
Osborn waves (marked with arrows)

Notch at the end of QRS

Sinus rhythm

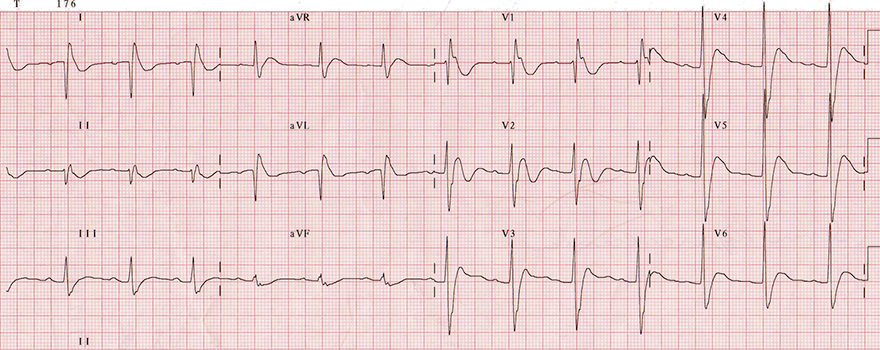

ECG hypercalcemia, high calcium level 6,1mmol/l, short QT interval, J - Osborn wave with notch

Hypercalcemia ( 6.1 mmol/l )

Borderline shortened QT interval ( QT_c: 0.35s )
Osborn wave ( "notch" in V1 )
The case involved a 41-year-old patient with hyperparathyroidism, who experienced ventricular fibrillation shortly after this ECG
